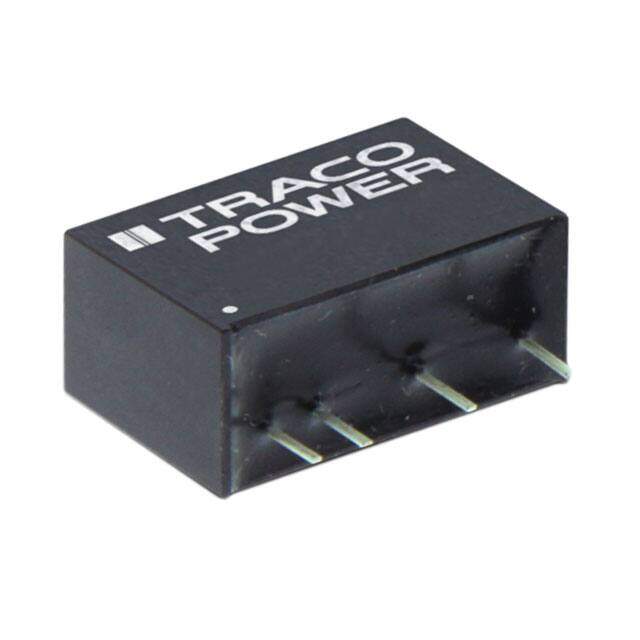

TMR 1-0522
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 1W
PDF
/
Buying Options
Total Price: USD $9.43
Unit Price: USD $9.4336
≥1 USD $9.4336
≥10 USD $9.28664
≥100 USD $9.143904
≥500 USD $8.858256
≥1000 USD $8.00096
≥3000 USD $7.858118
Inventory: 393
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 17mm
Height Seated (Max) 11.5mm
Technical
Total Power Output-Max 1W
Voltage - Output 2 -12V
Current - Output (Max) 42mA 42mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 9V
Voltage - Isolation 1.5kV
Efficiency 77%
Number of Outputs 2
JESD-30 Code R-PSMA-T5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature OCP, SCP
Size / Dimension 0.67Lx0.30W x 0.43 H 17.0mmx7.6mmx11.0mm
Series TMR 1 (1W)
Published 2013
Operating Temperature -40°C~85°C
Physical
Surface Mount NO
Package / Case 6-SIP Module, 4 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
