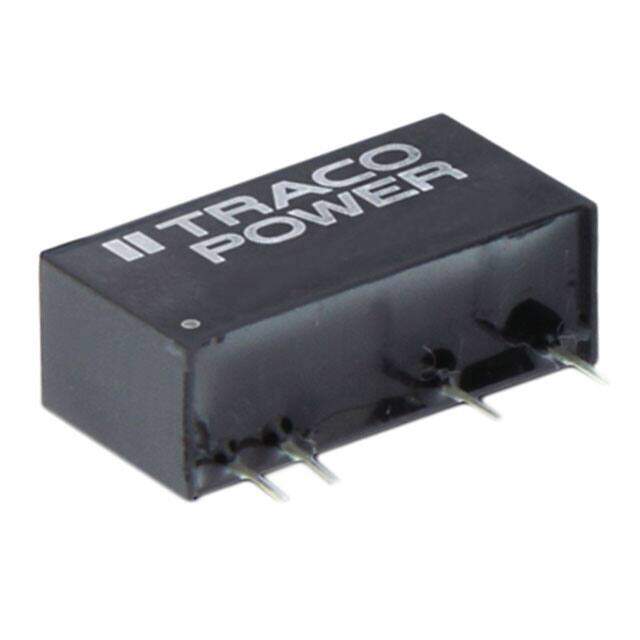

TMH 1215D
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 2W
PDF
/
Buying Options
Total Price: USD $6.83
Unit Price: USD $6.8288
≥1 USD $6.8288
≥10 USD $6.63344
≥100 USD $6.43808
≥500 USD $6.242896
≥1000 USD $6.0478
≥3000 USD $5.852739
Inventory: 106
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.5mm
Length 19.7mm
Height Seated (Max) 10.45mm
Technical
Total Power Output-Max 2W
Voltage - Output 2 -15V
Current - Output (Max) 66mA 66mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 12V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 13.2V
Voltage - Isolation 1kV
Efficiency 82%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-PSMA-T5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Subcategory Other Analog ICs
Additional Feature ADDITIONAL -15 VOLT OUTPUT ALSO AVAILABLE
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.30W x 0.40 H 19.5mmx7.5mmx10.2mm
Series TMH (2W)
Published 2010
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
