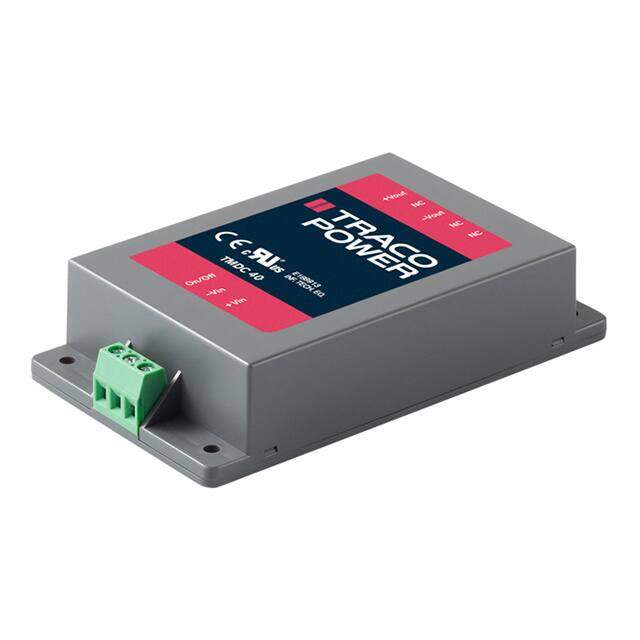

TMDC 40-4815
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER 24V 40W
PDF
/
Buying Options
Total Price: USD $64.46
Unit Price: USD $64.46
≥1 USD $64.46
≥10 USD $63.45592
≥100 USD $61.441248
≥500 USD $58.419504
≥1000 USD $54.3906
≥3000 USD $49.862982
Inventory: 69
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Total Power Output-Max 40W
Current - Output (Max) 1.67A
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 24V
Output Voltage 24V
Voltage - Input (Max) 75V
Voltage - Isolation 2.5kV
Efficiency 92%
Approval Agency CB, CE, cURus
Number of Outputs 1
JESD-30 Code R-PXFM-X8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 40W
Applications ITE (Commercial)
Type Enclosed
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 4.41Lx2.51W x 1.01 H 112.0mmx63.8mmx25.7mm
Series TMDC 40 (40W)
Published 2015
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 11 Weeks
Alternative Model
