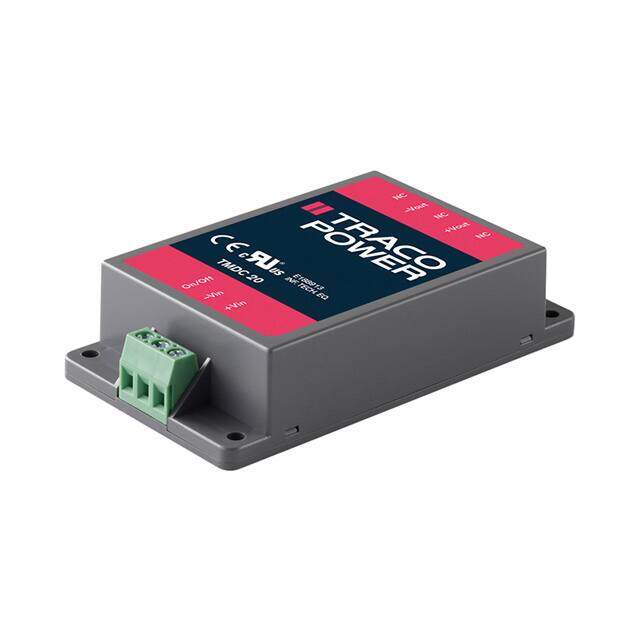

TMDC 20-4811
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER 5.1V 20W
PDF
/
Buying Options
Total Price: USD $57.04
Unit Price: USD $57.0416
≥1 USD $57.0416
≥10 USD $56.1484
≥100 USD $54.366048
≥500 USD $51.69208
≥1000 USD $48.1272
≥3000 USD $44.121018
Inventory: 67
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Total Power Output-Max 20W
Current - Output (Max) 4A
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 5.1V
Output Voltage 5.1V
Voltage - Input (Max) 75V
Voltage - Isolation 2.5kV
Efficiency 90%
Approval Agency CB, CE, cURus
Number of Outputs 1
JESD-30 Code R-PXFM-X8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 20W
Applications ITE (Commercial)
Type Enclosed
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 3.78Lx2.13W x 0.92 H 96.0mmx54.1mmx23.4mm
Series TMDC 20 (20W)
Published 2015
Operating Temperature -40°C~90°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 11 Weeks
