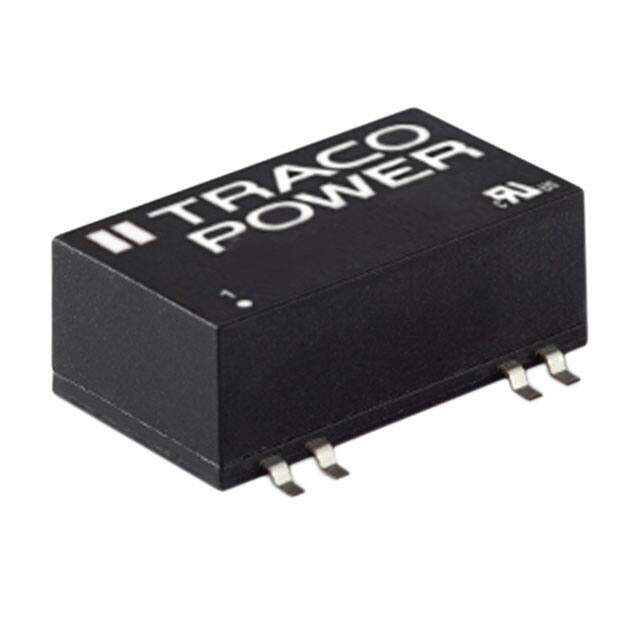

TIM 2-2412SM image
Favorite
TIM 2-2412SM image
Favorite

TIM 2-2412SM

Traco Power
RoHS
RoHS RoHS compliant
Package 16-SMD Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 12V 2W
PDF
/
Buying Options
Total Price: USD $29.04
Unit Price: USD $29.03697
≥1 USD $29.03697
≥10 USD $27.39337
≥100 USD $25.8428
≥500 USD $24.38
≥1000 USD $23
≥3000 USD $21.69811
Inventory: 1974
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mounting Type Surface Mount
Package / Case 16-SMD Module, 7 Leads
Surface Mount YES

Technical

Operating Temperature -40°C~95°C With Derating
Series TIM 2SM (2W)
Size / Dimension 0.96Lx0.57W x 0.40 H 24.3mmx14.4mmx10.2mm
Feature Remote On/Off, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 7
Type Isolated Module
Applications Medical
Power (Watts) 2W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PDMA-G7
Number of Outputs 1
Efficiency 80%
Voltage - Isolation 5kV
Voltage - Input (Max) 36V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 167mA
Total Power Output-Max 2W

Dimensions

Length 24.3mm

Compliance

RoHS Status ROHS3 Compliant
