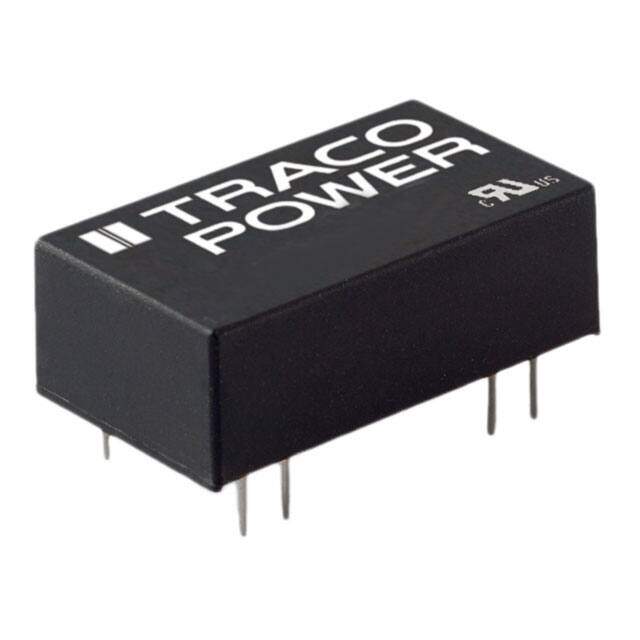

TIM 2-2412
RoHS
RoHS compliant
RoHS compliantPackage 16-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 2W
PDF
/
Buying Options
Total Price: USD $24.7
Unit Price: USD $24.7016
≥1 USD $24.7016
≥10 USD $24.31792
≥100 USD $23.93776
≥500 USD $22.797632
≥1000 USD $20.897888
≥3000 USD $20.517939
Inventory: 1156
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 24.3mm
Technical
Total Power Output-Max 2W
Current - Output (Max) 167mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 36V
Voltage - Isolation 5kV
Efficiency 80%
Number of Outputs 1
JESD-30 Code R-PDMA-P7
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 2W
Applications Medical
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, OVP, SCP
Size / Dimension 0.96Lx0.57W x 0.40 H 24.3mmx14.4mmx10.2mm
Series TIM 2 (2W)
Operating Temperature -40°C~95°C With Derating
Physical
Surface Mount NO
Package / Case 16-DIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
