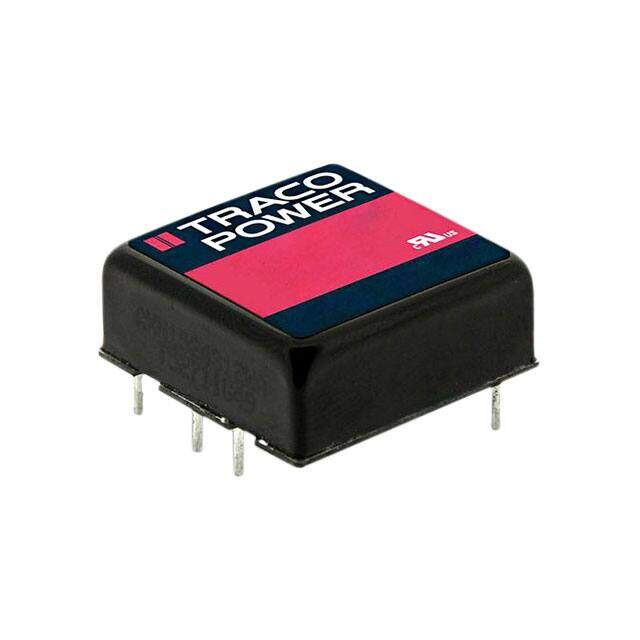

THN 30-4811
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 30W
PDF
/
Buying Options
Total Price: USD $115.14
Unit Price: USD $115.1379
≥1 USD $115.1379
≥10 USD $108.62066
≥100 USD $102.47232
≥500 USD $96.672
≥1000 USD $91.2
≥3000 USD $86.03774
Inventory: 7600
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~80°C With Derating
Published 2012
Series THN 30 (30W)
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Feature Remote On/Off, OTP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 30W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-MDMA-P6
Number of Outputs 1
Efficiency 89%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Current - Output (Max) 6A
Total Power Output-Max 30W
Dimensions
Length 25.4mm
Width 25.4mm
Compliance
RoHS Status ROHS3 Compliant
