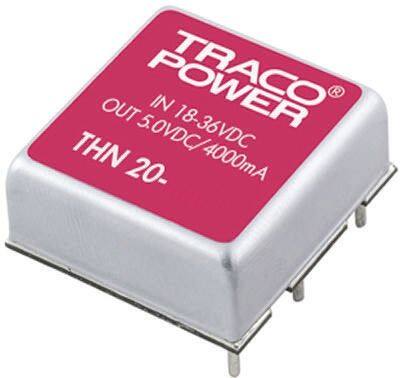

THN 20-1223
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 20W
PDF
/
Buying Options
Total Price: USD $46.11
Unit Price: USD $46.112
≥1 USD $46.112
≥10 USD $43.6612
≥100 USD $42.275552
≥500 USD $40.196464
≥1000 USD $37.424288
≥3000 USD $34.309018
Inventory: 91
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~75°C With Derating
Published 2013
Series THN 20 (20W)
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Feature Remote On/Off, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 20W
Technology HYBRID
Terminal Position DUAL
Number of Functions 1
JESD-30 Code S-MDMA-T6
Number of Outputs 2
Approval Agency EN, IEC, UL
Efficiency 89%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 18V
Output Voltage 15V
Voltage - Output 1 15V
Voltage - Input (Min) 9V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Current - Output (Max) 667mA 667mA
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Output 2 -15V
Control Mode VOLTAGE-MODE
Warm-up Time 0.03 s
Dimensions
Height 10.4mm
Height Seated (Max) 10.4mm
Compliance
RoHS Status ROHS3 Compliant
