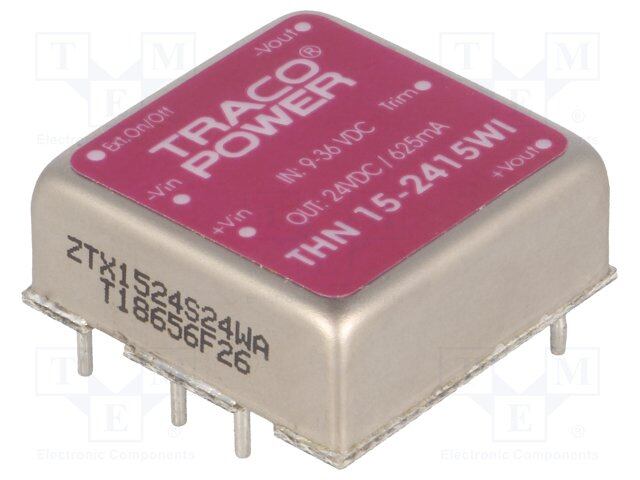

THN 15-2415WI
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 24V 15W
PDF
/
Buying Options
Total Price: USD $35.67
Unit Price: USD $35.6664
≥1 USD $35.6664
≥10 USD $35.08032
≥100 USD $33.966944
≥500 USD $32.296352
≥1000 USD $30.068984
≥3000 USD $29.62351
Inventory: 36
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 25.4mm
Length 25.4mm
Technical
Current - Output (Max) 625mA
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 24V
Output Voltage 24V
Voltage - Input (Max) 36V
Voltage - Isolation 1.6kV
Efficiency 90%
Number of Outputs 1
JESD-30 Code S-MDMA-P6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 15W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, OVP, SCP, UVLO
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Series THN 15WI (15W)
Published 2016
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
