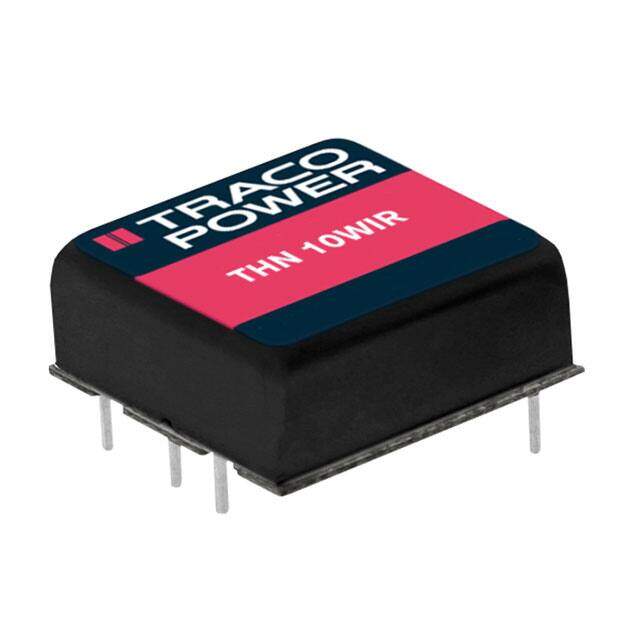

THN 10-2425WIR
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
10 WATT DC/DC CONVERTER, RAILWAY
PDF
/
Buying Options
Total Price: USD $33.38
Unit Price: USD $33.38202
≥1 USD $33.38202
≥10 USD $31.492472
≥100 USD $29.70988
≥500 USD $28.028191
≥1000 USD $26.441681
Inventory: 1149
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output 2 -24V
Current - Output (Max) 210mA 210mA
Voltage - Input (Min) 9V
Voltage - Output 1 24V
Voltage - Input (Max) 36V
Voltage - Isolation 3kV
Efficiency 90%
Number of Outputs 2
Power (Watts) 10W
Applications ITE (Commercial), Railway
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Remote On/Off
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Series THN 10WIR (10W)
Operating Temperature -40°C~105°C
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
