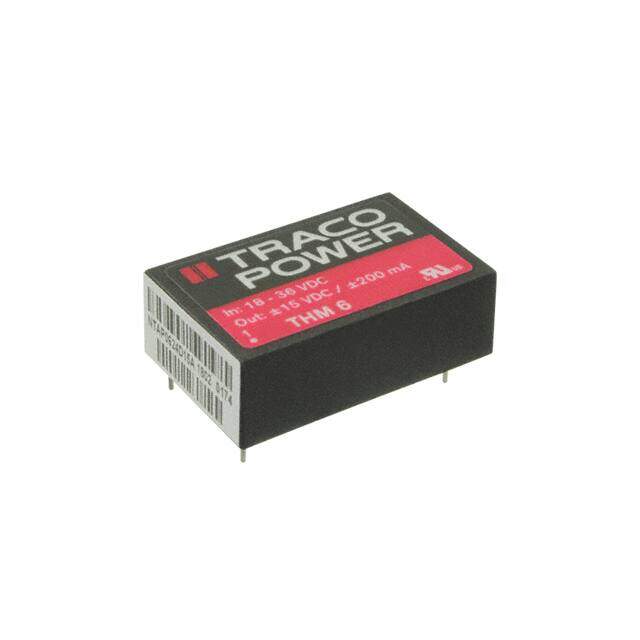

THM 6-2423
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 6W
PDF
/
Buying Options
Total Price: USD $41.28
Unit Price: USD $41.2808
≥1 USD $41.2808
≥10 USD $40.63752
≥100 USD $39.347968
≥500 USD $37.412672
≥1000 USD $34.832512
≥3000 USD $34.31648
Inventory: 70
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 24-DIP Module, 6 Leads
Technical
Operating Temperature -40°C~88°C
Series THM 6 (6W)
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Feature OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Applications Medical
Power (Watts) 6W
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 2
Efficiency 88.5%
Voltage - Isolation 5kV
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Input (Min) 18V
Current - Output (Max) 200mA 200mA
Voltage - Output 2 -15V
Compliance
RoHS Status ROHS3 Compliant
