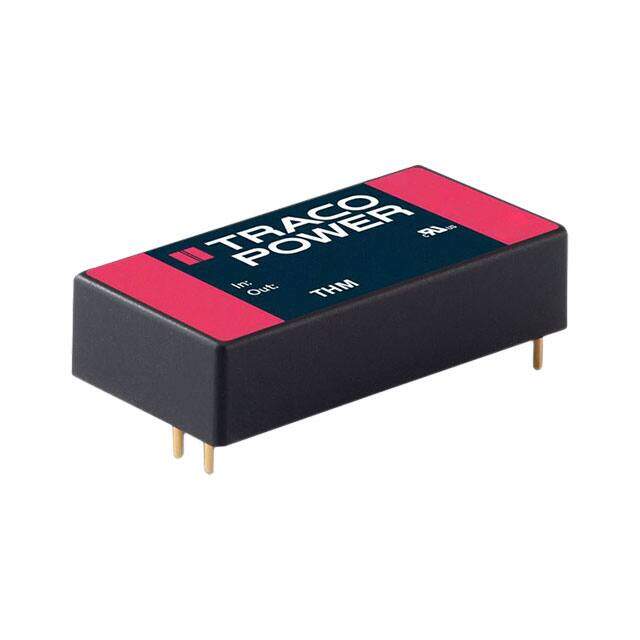

THM 30-4823 image
Favorite
THM 30-4823 image
Favorite

THM 30-4823

Traco Power
RoHS
RoHS RoHS compliant
Package 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-15V 30W
PDF
/
Buying Options
Total Price: USD $98.76
Unit Price: USD $98.75807
≥1 USD $98.75807
≥10 USD $93.16799
≥100 USD $87.89433
≥500 USD $82.91918
≥1000 USD $78.22564
Inventory: 8764
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mounting Type Through Hole
Package / Case 5-DIP Module
Surface Mount NO

Technical

Operating Temperature -40°C~80°C With Derating
Series THM 30 (30W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature OCP, OTP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications Medical
Power (Watts) 30W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-P6
Number of Outputs 2
Efficiency 89%
Voltage - Isolation 5kV
Voltage - Input (Max) 75V
Output Voltage 15V
Voltage - Output 1 15V
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 1A 1A
Voltage - Output 2 -15V
Total Power Output-Max 30W

Dimensions

Height Seated (Max) 10.7mm
Length 50.8mm

Compliance

RoHS Status ROHS3 Compliant
