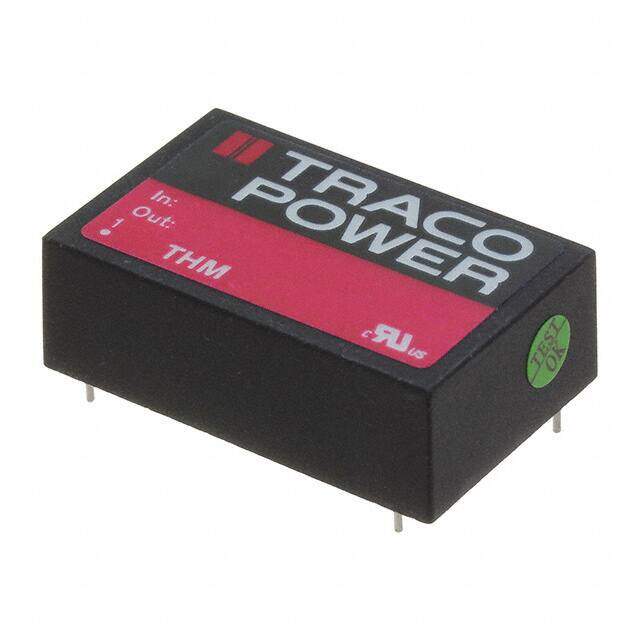

THM 3-0523
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 3W
PDF
/
Buying Options
Total Price: USD $37.66
Unit Price: USD $37.6552
≥1 USD $37.6552
≥10 USD $37.06824
≥100 USD $35.89168
≥500 USD $34.1264
≥1000 USD $31.77284
≥3000 USD $31.302128
Inventory: 33
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 31.8mm
Height Seated (Max) 10.7mm
Technical
Total Power Output-Max 3W
Voltage - Output 2 -15V
Current - Output (Max) 100mA 100mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 9V
Voltage - Isolation 5kV
Efficiency 86%
Number of Outputs 2
JESD-30 Code R-PDMA-P7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 3W
Applications Medical
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature OCP, OVP, SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series THM 3 (3W)
Operating Temperature -40°C~90°C
Physical
Surface Mount NO
Package / Case 24-DIP Module, 6 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
