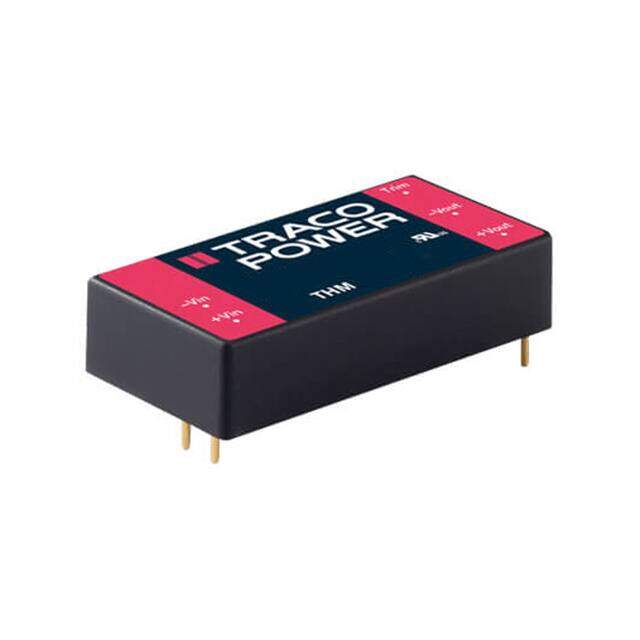

THM 20-4823
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 20W
PDF
/
Buying Options
Total Price: USD $61.64
Unit Price: USD $61.644
≥1 USD $61.644
≥10 USD $60.68392
≥100 USD $58.7576
≥500 USD $55.86768
≥1000 USD $52.014776
≥3000 USD $47.685018
Inventory: 95
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 5-DIP Module
Technical
Operating Temperature -40°C~80°C With Derating
Series THM 20 (20W)
Size / Dimension 1.60Lx1.00W x 0.40 H 40.6mmx25.4mmx10.2mm
Feature OCP, OTP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Isolated Module
Applications Medical
Power (Watts) 20W
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 2
Efficiency 88%
Voltage - Isolation 5kV
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Input (Min) 36V
Current - Output (Max) 667mA 667mA
Voltage - Output 2 -15V
Compliance
RoHS Status ROHS3 Compliant
