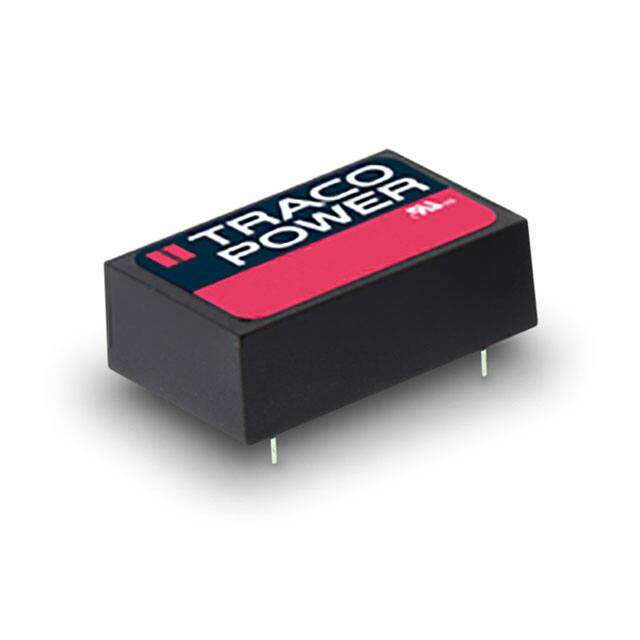

THM 10-4822
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 10W
PDF
/
Inventory: 2206
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output 2 -12V
Current - Output (Max) 416mA 416mA
Voltage - Input (Min) 36V
Voltage - Output 1 12V
Voltage - Input (Max) 75V
Voltage - Isolation 5kV
Efficiency 88%
Number of Outputs 2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power (Watts) 10W
Applications Medical
Type Isolated Module
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature OCP, OVP, SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series THM 10 (10W)
Operating Temperature -40°C~90°C With Derating
Physical
Package / Case 24-DIP Module, 6 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
