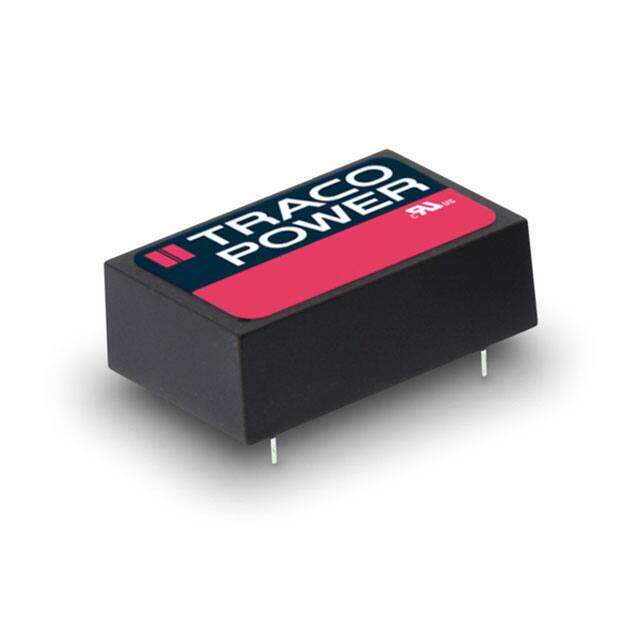

THM 10-1222
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 10W
PDF
/
Buying Options
Total Price: USD $50.88
Unit Price: USD $50.884298
≥1 USD $50.884298
≥10 USD $48.004059
≥100 USD $45.286846
≥500 USD $42.723438
≥1000 USD $40.305133
Inventory: 1153
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 24-DIP Module, 6 Leads
Technical
Operating Temperature -40°C~90°C With Derating
Series THM 10 (10W)
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Feature OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Applications Medical
Power (Watts) 10W
Number of Outputs 2
Efficiency 89%
Voltage - Isolation 5kV
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Input (Min) 9V
Current - Output (Max) 416mA 416mA
Voltage - Output 2 -12V
Compliance
RoHS Status ROHS3 Compliant
