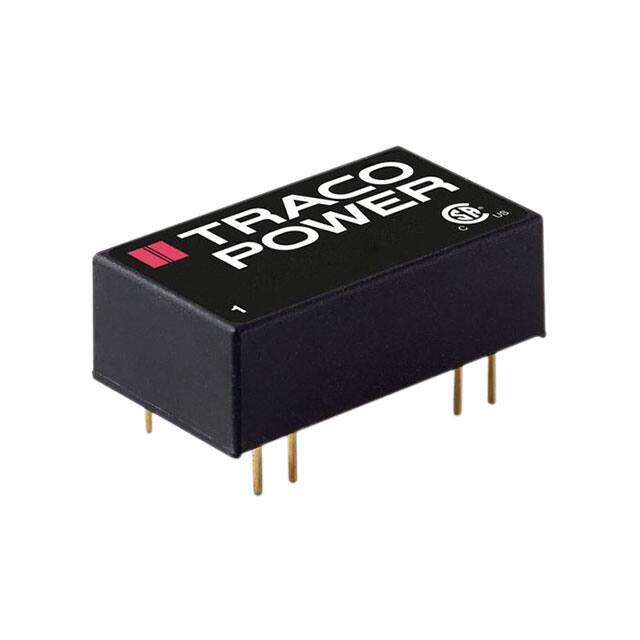

THL 3-2422WI
RoHS
RoHS compliant
RoHS compliantPackage 16-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 3W
PDF
/
Inventory: 4662
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 13.7mm
Technical
Total Power Output-Max 3W
Voltage - Output 2 -12V
Current - Output (Max) 125mA 125mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 80%
Number of Outputs 2
JESD-30 Code R-PDMA-G7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Power (Watts) 3W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 0.94Lx0.54W x 0.31 H 23.8mmx13.7mmx8.0mm
Series THL 3WI (3W)
Published 2003
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount YES
Package / Case 16-DIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
