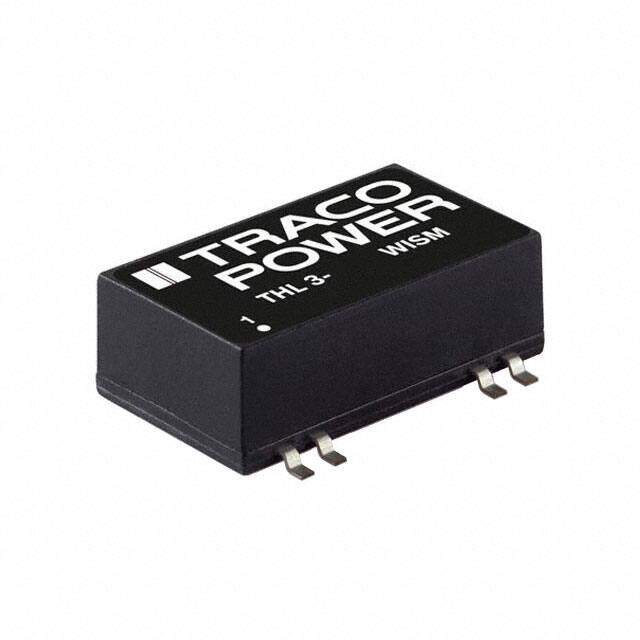

THL 3-2411WISM
RoHS
RoHS compliant
RoHS compliantPackage 16-SMD Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 3W
PDF
/
Buying Options
Total Price: USD $20.79
Unit Price: USD $20.7944
≥1 USD $20.7944
≥10 USD $19.29752
≥100 USD $18.996032
≥500 USD $18.091568
≥1000 USD $16.583864
≥3000 USD $16.282358
Inventory: 58
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 24mm
Technical
Total Power Output-Max 3W
Current - Output (Max) 600mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 78%
Number of Outputs 1
JESD-30 Code R-PDMA-G7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Power (Watts) 3W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 0.94Lx0.54W x 0.32 H 24.0mmx13.7mmx8.3mm
Series THL 3WISM (3W)
Published 2012
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount YES
Package / Case 16-SMD Module, 7 Leads
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
