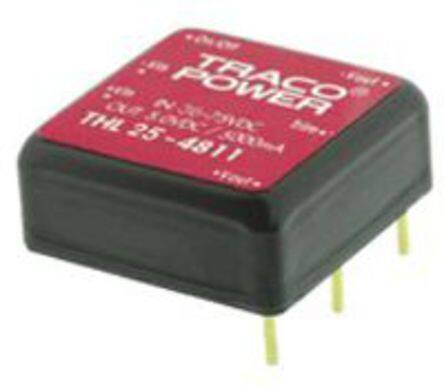

THL 25-2423
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 25W
PDF
/
Buying Options
Total Price: USD $56.46
Unit Price: USD $56.4608
≥1 USD $56.4608
≥10 USD $51.45888
≥100 USD $49.825248
≥500 USD $47.3748
≥1000 USD $44.107624
≥3000 USD $40.436
Inventory: 64
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~80°C With Derating
Published 2014
Series THL 25 (25W)
Size / Dimension 1.00Lx1.00W x 0.40 H 25.4mmx25.4mmx10.2mm
Feature Remote On/Off, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 25W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-MDMA-P6
Number of Outputs 2
Efficiency 89%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Output Voltage 15V
Voltage - Output 1 15V
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 840mA 840mA
Voltage - Output 2 -15V
Compliance
RoHS Status ROHS3 Compliant
