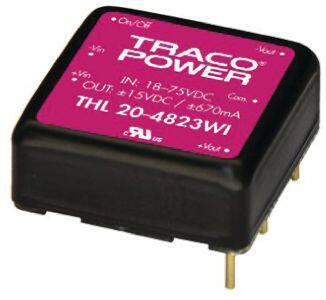

THL 20-4823WI
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 20W
PDF
/
Buying Options
Total Price: USD $56.81
Unit Price: USD $56.81146
≥1 USD $56.81146
≥10 USD $53.59572
≥100 USD $50.562
≥500 USD $47.7
≥1000 USD $45
≥3000 USD $42.45283
Inventory: 2603
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 10.7mm
Technical
Voltage - Output 2 -15V
Current - Output (Max) 670mA 670mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 89%
Number of Outputs 2
JESD-30 Code S-MDMA-P6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 20W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 1.00Lx1.00W x 0.40 H 25.4mmx25.4mmx10.2mm
Series THL 20WI (20W)
Published 2014
Operating Temperature -40°C~75°C With Derating
Physical
Surface Mount NO
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
