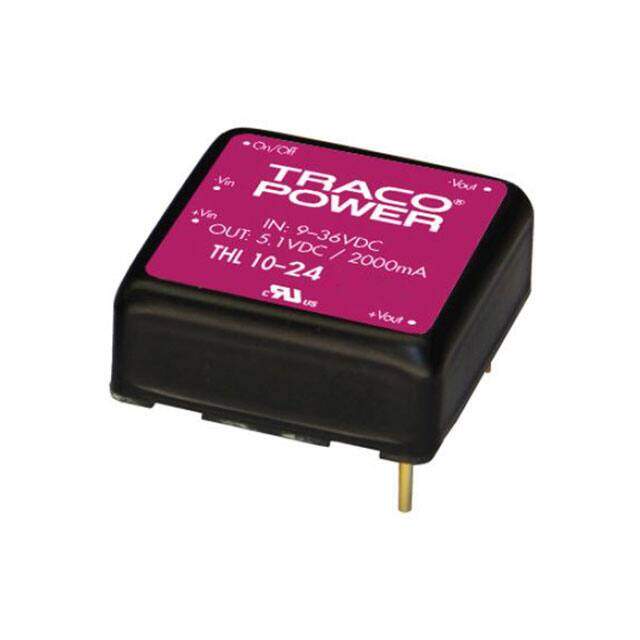

THL 10-4822WI
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 9.8W
PDF
/
Buying Options
Total Price: USD $34.09
Unit Price: USD $34.08688
≥1 USD $34.08688
≥10 USD $32.15743
≥100 USD $30.3372
≥500 USD $28.62
≥1000 USD $27
≥3000 USD $25.4717
Inventory: 5959
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 10.7mm
Technical
Total Power Output-Max 10W
Voltage - Output 2 -12V
Current - Output (Max) 410mA 410mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 86%
Number of Outputs 2
JESD-30 Code S-MDMA-T6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Power (Watts) 9.8W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 1.00Lx1.00W x 0.40 H 25.4mmx25.4mmx10.2mm
Series THL 10WI (10W)
Published 2012
Operating Temperature -40°C~75°C With Derating
Physical
Surface Mount NO
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
