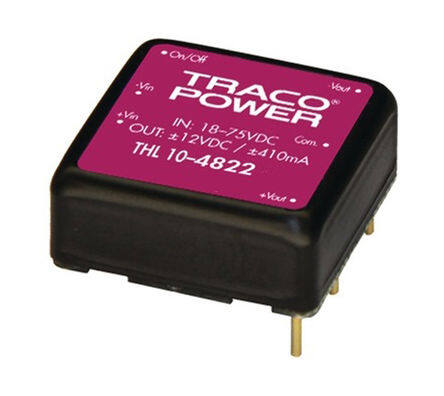

THL 10-4822
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 10W
PDF
/
Buying Options
Total Price: USD $31.56
Unit Price: USD $31.56192
≥1 USD $31.56192
≥10 USD $29.7754
≥100 USD $28.09
≥500 USD $26.5
≥1000 USD $25
≥3000 USD $23.58491
Inventory: 3327
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 10.7mm
Technical
Total Power Output-Max 10W
Voltage - Output 2 -12V
Current - Output (Max) 416mA 416mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 87%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code S-MDMA-P5
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Subcategory Other Analog ICs
Power (Watts) 10W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
Size / Dimension 1.00Lx1.00W x 0.40 H 25.4mmx25.4mmx10.2mm
Series THL 10 (10W)
Published 2014
Operating Temperature -40°C~80°C With Derating
Physical
Surface Mount NO
Package / Case 5-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
