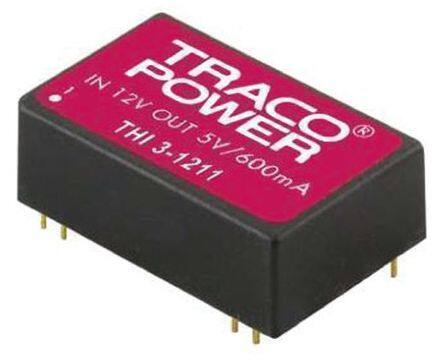

THI 3-1223
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 3W
PDF
/
Buying Options
Total Price: USD $30.3
Unit Price: USD $30.29945
≥1 USD $30.29945
≥10 USD $28.58438
≥100 USD $26.9664
≥500 USD $25.44
≥1000 USD $24
≥3000 USD $22.64151
Inventory: 5345
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output 2 -15V
Current - Output (Max) 100mA 100mA
Voltage - Input (Min) 10.8V
Voltage - Output 1 15V
Voltage - Input (Max) 13.2V
Voltage - Isolation 4kV
Efficiency 60%
Number of Outputs 2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power (Watts) 3W
Applications ITE (Commercial), Medical
Type Isolated Module
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.41 H 31.8mmx20.3mmx10.5mm
Series THI 3 (3W)
Published 2014
Operating Temperature -40°C~75°C
Physical
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
