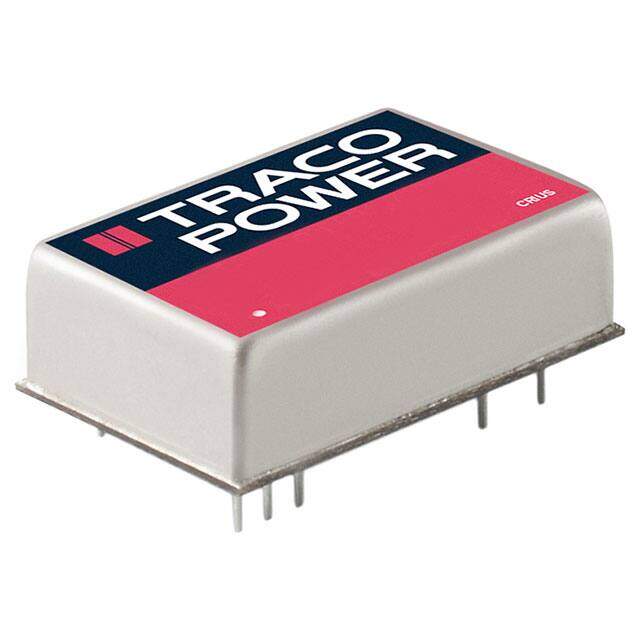

THD 15-4822WIN

Traco Power
RoHS
RoHS RoHS compliant
Package 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-12V 15W
PDF
/
Inventory: 2646
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Surface Mount NO

Technical

Operating Temperature -40°C~85°C With Derating
Published 2010
Series THD 15WIN (15W)
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Feature Remote On/Off, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 9
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 15W
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-MDMA-T9
Number of Outputs 2
Efficiency 89%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 625mA 625mA
Voltage - Output 2 -12V
Total Power Output-Max 15W

Dimensions

Height Seated (Max) 10.7mm
Length 31.8mm

Compliance

RoHS Status ROHS3 Compliant
