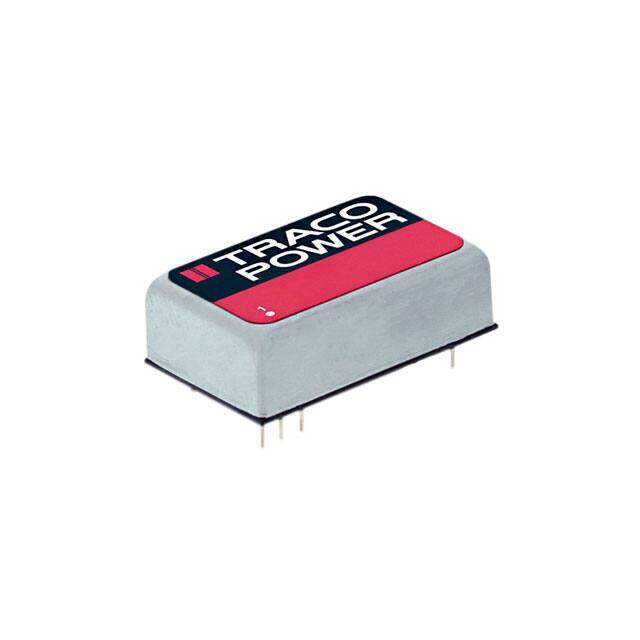

THD 15-4813WIN
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 15V 15W
PDF
/
Buying Options
Total Price: USD $47.68
Unit Price: USD $47.6784
≥1 USD $47.6784
≥10 USD $46.02752
≥100 USD $44.566368
≥500 USD $42.374464
≥1000 USD $39.452072
≥3000 USD $36.168
Inventory: 28
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Published 2010
Series THD 15WIN (15W)
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Feature Remote On/Off, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 9
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 15W
Additional Feature SEATED HGT CALCULATED
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-MDMA-T9
Number of Outputs 1
Efficiency 90%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 15V
Voltage - Output 1 15V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 1A
Dimensions
Width 20.3mm
Compliance
RoHS Status ROHS3 Compliant
