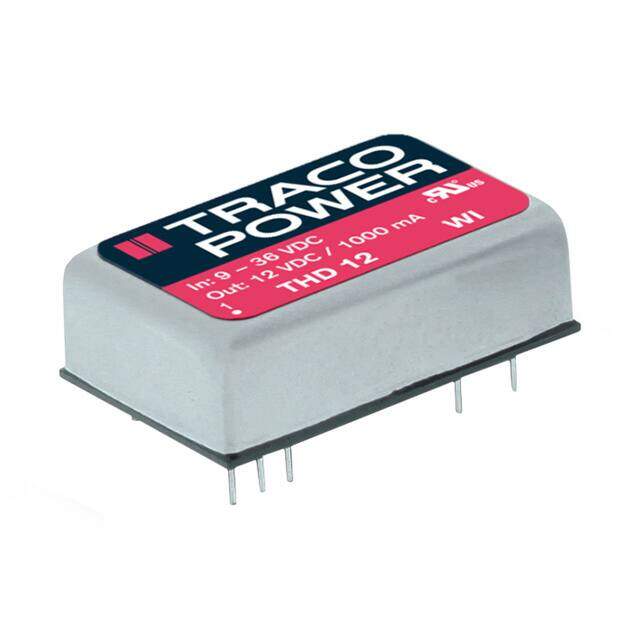

THD 12-4821WI
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 12W
PDF
/
Inventory: 5423
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 31.8mm
Height Seated (Max) 10.7mm
Technical
Voltage - Output 2 -5V
Current - Output (Max) 1.2A 1.2A
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 82%
Number of Outputs 2
JESD-30 Code R-MDMA-T9
Number of Functions 1
Terminal Position DUAL
Technology HYBRID
Power (Watts) 12W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 9
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, OVP, SCP, UVLO
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series THD 12WI (12W)
Published 2012
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
