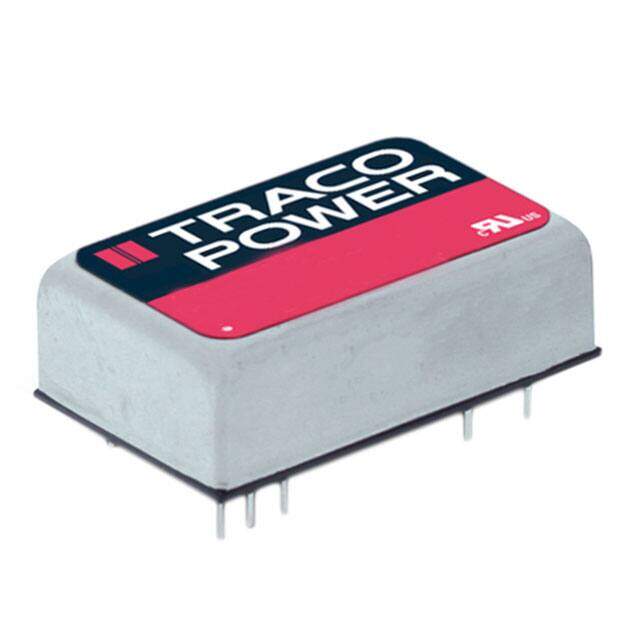

THD 12-1211
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5.1V 12W
PDF
/
Buying Options
Total Price: USD $34.47
Unit Price: USD $34.4696
≥1 USD $34.4696
≥10 USD $32.52304
≥100 USD $32.014752
≥500 USD $30.49024
≥1000 USD $27.949416
≥3000 USD $27.441251
Inventory: 53
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 20.24mm
Technical
Current - Output (Max) 2.4A
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 9V
Voltage - Output 1 5.1V
Output Voltage 5.1V
Voltage - Input (Max) 18V
Voltage - Isolation 1.5kV
Efficiency 86%
Number of Outputs 1
JESD-30 Code R-PDMA-P9
Pin Count 24/9
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 12W
Applications ITE (Commercial)
Terminal Finish Nickel (Ni)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OVP, SCP, UVLO
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series THD 12 (12W)
Published 2014
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
