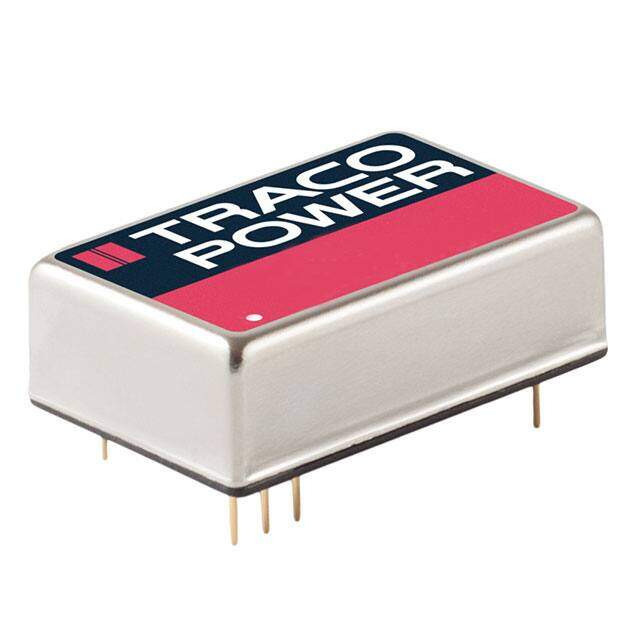

THD 10-4823WIN
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 10W
PDF
/
Buying Options
Total Price: USD $28.19
Unit Price: USD $28.1864
≥1 USD $28.1864
≥10 USD $27.16208
≥100 USD $26.737216
≥500 USD $25.464032
≥1000 USD $23.342088
≥3000 USD $22.917699
Inventory: 1381
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 31.8mm
Height Seated (Max) 10.7mm
Technical
Total Power Output-Max 9.99W
Voltage - Output 2 -15V
Current - Output (Max) 333mA 333mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 87%
Number of Outputs 2
JESD-30 Code R-MDMA-P9
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 10W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, OCP, SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series THD 10WIN (10W)
Published 2014
Packaging Tube
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 24-DIP Module, 9 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
