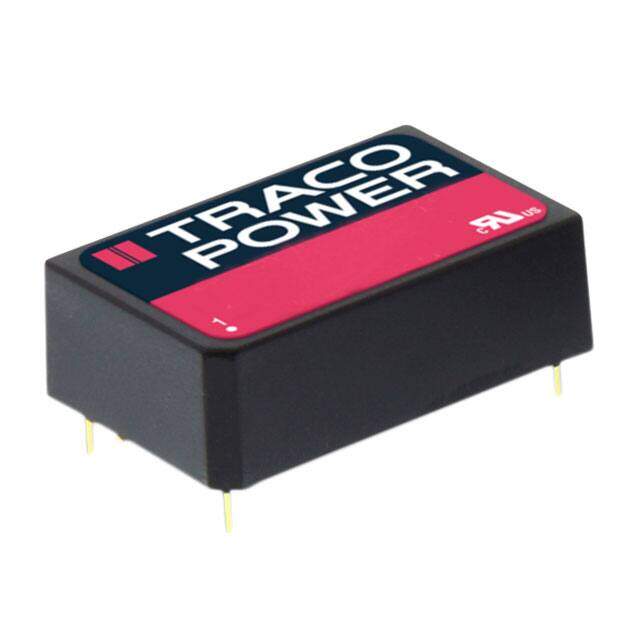

THB 3-2423 image
Favorite
THB 3-2423 image
Favorite

THB 3-2423

Traco Power
RoHS
RoHS RoHS compliant
Package 24-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-15V 3W
PDF
/
Buying Options
Total Price: USD $35.66
Unit Price: USD $35.6576
≥1 USD $35.6576
≥10 USD $35.11112
≥100 USD $34.562528
≥500 USD $32.916752
≥1000 USD $30.173616
≥3000 USD $29.625024
Inventory: 89
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mounting Type Through Hole
Package / Case 24-DIP Module, 6 Leads
Surface Mount NO

Technical

Operating Temperature -40°C~85°C With Derating
Published 2007
Series THB 3 (3W)
Size / Dimension 1.25Lx0.80W x 0.41 H 31.8mmx20.3mmx10.5mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Power (Watts) 3W
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-T7
Number of Outputs 2
Efficiency 83%
Voltage - Isolation 3kV
Voltage - Input (Max) 36V
Output Voltage 15V
Voltage - Output 1 15V
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 100mA 100mA
Voltage - Output 2 -15V
Total Power Output-Max 3W

Dimensions

Height Seated (Max) 10.75mm
Length 31.8mm

Compliance

RoHS Status ROHS3 Compliant
