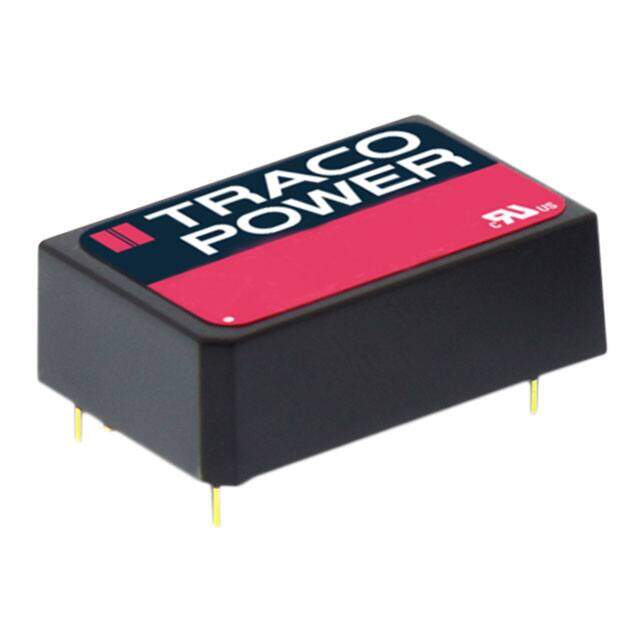

THB 3-0512
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 3W
PDF
/
Buying Options
Total Price: USD $32.13
Unit Price: USD $32.133812
≥1 USD $32.133812
≥10 USD $30.314919
≥100 USD $28.598982
≥500 USD $26.980172
≥1000 USD $25.452986
Inventory: 1214
Minimum: 1
-
+
Technical Details
Technical
Type Isolated Module
Applications ITE (Commercial), Medical
Power (Watts) 3W
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.41 H 31.8mmx20.3mmx10.5mm
Series THB 3 (3W)
Published 2014
Operating Temperature -40°C~85°C With Derating
Total Power Output-Max 3W
Current - Output (Max) 250mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 9V
Voltage - Isolation 3kV
Efficiency 75%
Number of Outputs 1
JESD-30 Code R-PDMA-T7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Additional Feature SEATED HGT CALCULATED
Physical
Surface Mount NO
Package / Case 24-DIP Module, 5 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.62mm
