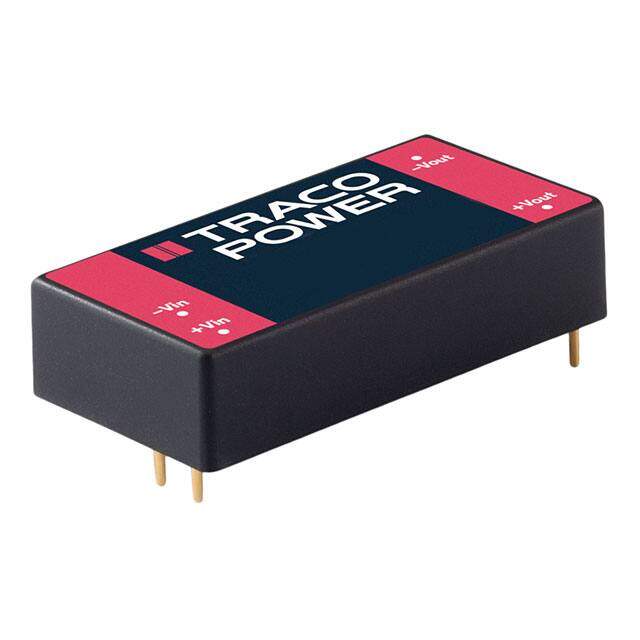

THB 10-1212

Traco Power
RoHS
RoHS RoHS compliant
Package 5-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 12V 10W
PDF
/
Buying Options
Total Price: USD $57.38
Unit Price: USD $57.3848
≥1 USD $57.3848
≥10 USD $56.34464
≥100 USD $54.555776
≥500 USD $51.872656
≥1000 USD $48.295192
≥3000 USD $44.274982
Inventory: 82
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mounting Type Through Hole
Package / Case 5-DIP Module, 4 Leads
Surface Mount NO

Technical

Operating Temperature -40°C~75°C With Derating
Published 2013
Series THB 10 (10W)
Size / Dimension 2.00Lx1.00W x 0.47 H 50.8mmx25.4mmx12.0mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Power (Watts) 10W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
JESD-30 Code R-PDMA-P5
Number of Outputs 1
Efficiency 80%
Voltage - Isolation 4kV
Voltage - Input (Max) 18V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 9V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Current - Output (Max) 835mA

Dimensions

Length 50.8mm
Width 25.4mm

Compliance

RoHS Status ROHS3 Compliant
