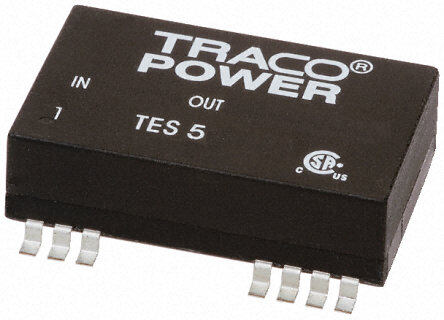

TES 5-1223 image
Favorite
TES 5-1223 image
Favorite

TES 5-1223

Traco Power
RoHS
RoHS RoHS compliant
Package 24-SMD Module, 14 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-15V 5W
PDF
/
Buying Options
Total Price: USD $34.34
Unit Price: USD $34.33602
≥1 USD $34.33602
≥10 USD $32.392464
≥100 USD $30.558932
≥500 USD $28.829187
≥1000 USD $27.197341
Inventory: 1147
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Voltage - Output 2 -15V
Current - Output (Max) 165mA 165mA
Voltage - Input (Min) 9V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 18V
Voltage - Isolation 1.5kV
Efficiency 83%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-PDSO-G14
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Other Analog ICs
Power (Watts) 5W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 14
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 1.31Lx0.81W x 0.40 H 33.4mmx20.6mmx10.2mm
Series TES 5 (5W)
Published 2010
Operating Temperature -40°C~85°C With Derating

Physical

Surface Mount YES
Package / Case 24-SMD Module, 14 Leads
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 11 Weeks
