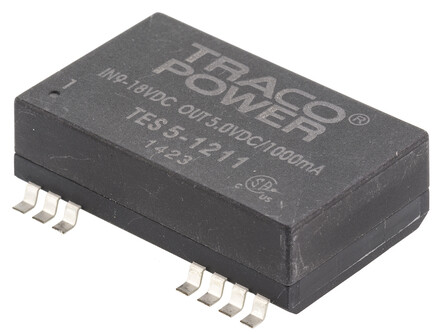

TES 5-1211
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD Module, 14 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 5W
PDF
/
Buying Options
Total Price: USD $32.62
Unit Price: USD $32.6216
≥1 USD $32.6216
≥10 USD $30.17696
≥100 USD $29.704928
≥500 USD $28.290592
≥1000 USD $25.932984
≥3000 USD $25.461462
Inventory: 44
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Surface Mount
Package / Case 24-SMD Module, 14 Leads
Surface Mount YES
Technical
Operating Temperature -40°C~85°C With Derating
Published 2007
Series TES 5 (5W)
Size / Dimension 1.31Lx0.81W x 0.40 H 33.4mmx20.6mmx10.2mm
Feature Remote On/Off, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 14
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 5W
Subcategory Other Analog ICs
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 80%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 18V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 9V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Current - Output (Max) 1A
Total Power Output-Max 5W
Dimensions
Length 33.4mm
Width 20.6mm
Compliance
RoHS Status ROHS3 Compliant
