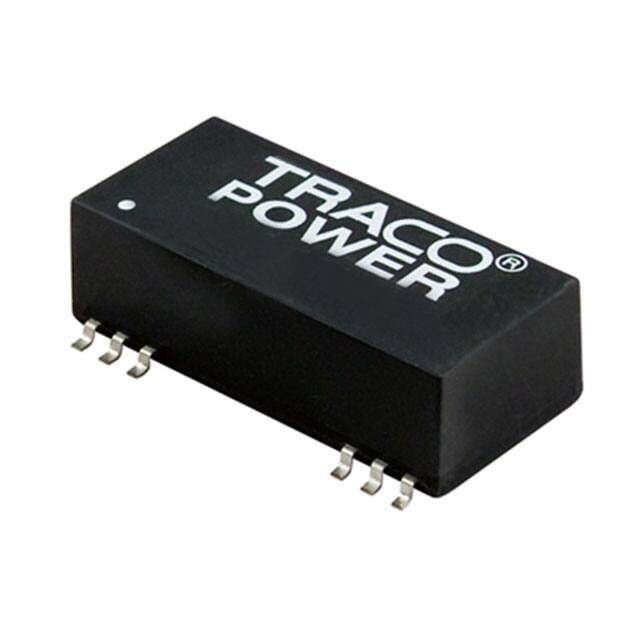

TES 3-2421WI
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD Module, 12 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 3W
PDF
/
Buying Options
Total Price: USD $30.45
Unit Price: USD $30.449575
≥1 USD $30.449575
≥10 USD $28.726013
≥100 USD $27.100016
≥500 USD $25.566055
≥1000 USD $24.118914
Inventory: 1126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Surface Mount
Package / Case 24-SMD Module, 12 Leads
Surface Mount YES
Technical
Operating Temperature -40°C~71°C
Published 2011
Series TES 3WI (3W)
Size / Dimension 1.27Lx0.58W x 0.40 H 32.2mmx14.8mmx10.2mm
Feature Remote On/Off, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 12
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 3W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 2
Efficiency 78%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 9V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 300mA 300mA
Voltage - Output 2 -5V
Total Power Output-Max 3W
Dimensions
Height Seated (Max) 10.45mm
Width 14.8mm
Compliance
RoHS Status ROHS3 Compliant
