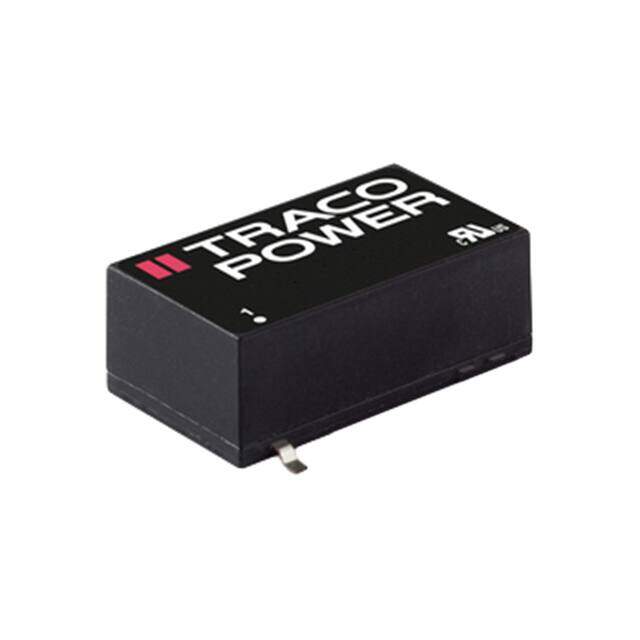

TES 2-2411M image
Favorite
TES 2-2411M image
Favorite

TES 2-2411M

Traco Power
RoHS
RoHS RoHS compliant
Package 16-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5V 2W
PDF
/
Buying Options
Total Price: USD $25.22
Unit Price: USD $25.222545
≥1 USD $25.222545
≥10 USD $23.794856
≥100 USD $22.447978
≥500 USD $21.177333
≥1000 USD $19.978622
Inventory: 1296
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mounting Type Surface Mount
Package / Case 16-SMD Module, 6 Leads
Surface Mount YES

Technical

Operating Temperature -25°C~80°C With Derating
Published 2013
Series TES 2M (2W)
Size / Dimension 0.94Lx0.54W x 0.36 H 24.0mmx13.7mmx9.3mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Power (Watts) 2W
Additional Feature SEATED HGT CALCULATED
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-G6
Number of Outputs 1
Efficiency 66%
Voltage - Isolation 4kV
Voltage - Input (Max) 26.4V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 21.6V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 400mA
Total Power Output-Max 2W

Dimensions

Height Seated (Max) 9.45mm
Length 24mm

Compliance

RoHS Status ROHS3 Compliant
