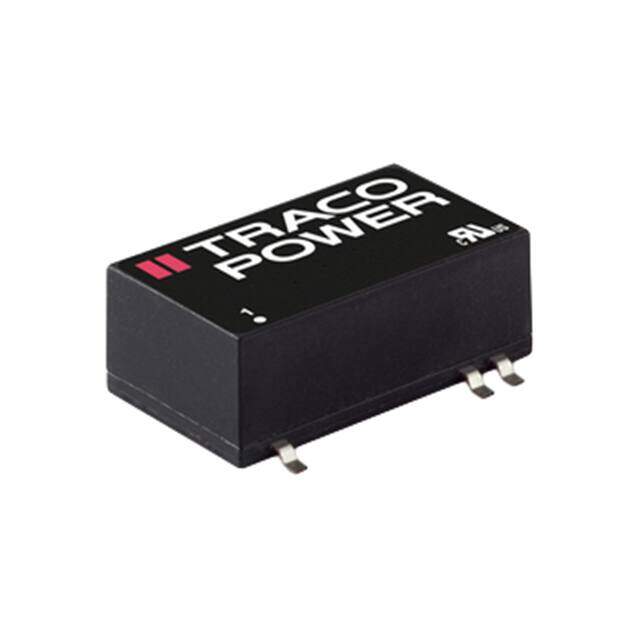

TES 2-0522M
RoHS
RoHS compliant
RoHS compliantPackage 16-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 2W
PDF
/
Buying Options
Total Price: USD $31.56
Unit Price: USD $31.56192
≥1 USD $31.56192
≥10 USD $29.7754
≥100 USD $28.09
≥500 USD $26.5
≥1000 USD $25
≥3000 USD $23.58491
Inventory: 5682
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 13.7mm
Height Seated (Max) 9.45mm
Technical
Total Power Output-Max 2W
Voltage - Output 2 -12V
Current - Output (Max) 83mA 83mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 5.5V
Voltage - Isolation 4kV
Efficiency 72%
Number of Outputs 2
JESD-30 Code R-PDMA-G6
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Power (Watts) 2W
Applications ITE (Commercial), Medical
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Feature SCP
Size / Dimension 0.94Lx0.54W x 0.36 H 24.0mmx13.7mmx9.3mm
Series TES 2M (2W)
Published 2006
Operating Temperature -25°C~80°C With Derating
Physical
Surface Mount YES
Package / Case 16-SMD Module, 6 Leads
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
