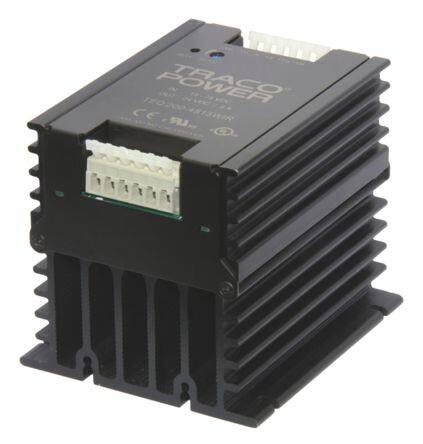

TEQ 200-4816WIR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER 28V 210W
PDF
/
Inventory: 9078
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -40°C~105°C
Published 2014
Series TEQ 20WIR (20W)
Size / Dimension 4.06Lx3.50W x 3.45 H 103.1mmx88.9mmx87.6mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 12
ECCN Code EAR99
Type Enclosed
Applications Industrial, ITE (Commercial), Railway
Power (Watts) 210W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Approval Agency CB, cULus, cURus
Efficiency 90%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Output Voltage 16V
Voltage - Output 1 28V
Voltage - Input (Min) 19V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Current - Output (Max) 7.5A
Total Power Output-Max 200W
Compliance
RoHS Status ROHS3 Compliant
