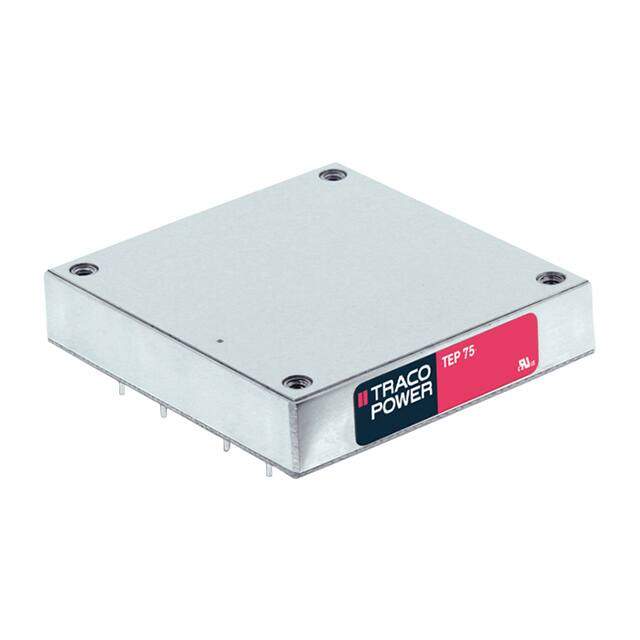

TEP 75-4811WI
RoHS
RoHS compliant
RoHS compliantPackage 9-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 75W
PDF
/
Buying Options
Total Price: USD $109.59
Unit Price: USD $109.5864
≥1 USD $109.5864
≥10 USD $105.95464
≥100 USD $99.118624
≥500 USD $95.700704
≥1000 USD $84.601
Inventory: 35
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 9-DIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~75°C
Published 2012
Series TEP 75WI (75W)
Size / Dimension 2.40Lx2.28W x 0.50 H 61.0mmx57.9mmx12.7mm
Feature Remote On/Off, OTP, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 9
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Railway
Power (Watts) 75W
Additional Feature SEATED HGT CALCULATED
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-MDMA-T9
Number of Outputs 1
Efficiency 90%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Current - Output (Max) 15A
Total Power Output-Max 75W
Dimensions
Width 57.9mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
