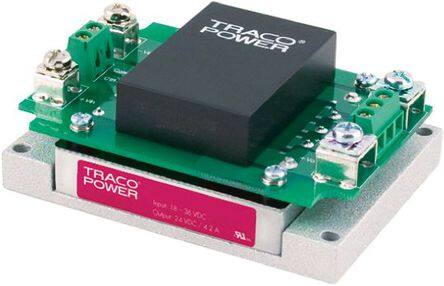

TEP 200-4815WIRCMF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER 24V 216W
PDF
/
Buying Options
Total Price: USD $378.2
Unit Price: USD $378.1976
≥1 USD $378.1976
≥10 USD $336.26648
≥100 USD $318.568096
≥500 USD $292.05
Inventory: 59
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current - Output (Max) 9A
Voltage - Input (Min) 18V
Voltage - Output 1 24V
Voltage - Input (Max) 75V
Voltage - Isolation 2.25kV
Efficiency 90%
Approval Agency cURus
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power (Watts) 216W
Applications ITE (Commercial), Railway
Type Open Frame
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 3.35Lx2.40W x 1.53 H 85.1mmx61.0mmx38.9mm
Series TEP 200WIR (180 ~ 240W)
Published 2014
Operating Temperature -40°C~75°C
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 13 Weeks
