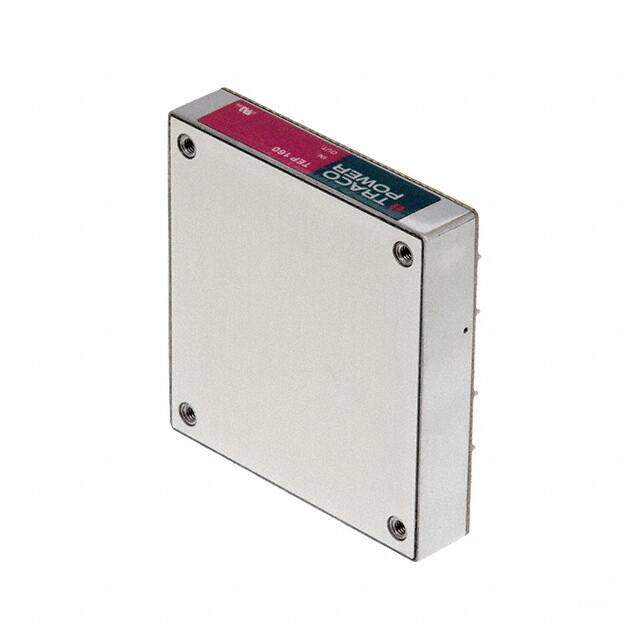

TEP 160-7216WIRCMF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER 28V 182W
PDF
/
Inventory: 9134
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current - Output (Max) 6.5A
Voltage - Input (Min) 43V
Voltage - Output 1 28V
Voltage - Input (Max) 160V
Voltage - Isolation 2.25kV
Efficiency 90%
Approval Agency cURus
Number of Outputs 1
Power (Watts) 182W
Applications ITE (Commercial), Railway
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 3.35Lx2.40W x 1.33 H 85.1mmx61.0mmx33.8mm
Series TEP 160WIR (144 ~ 182W)
Operating Temperature -40°C~75°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 10 Weeks
