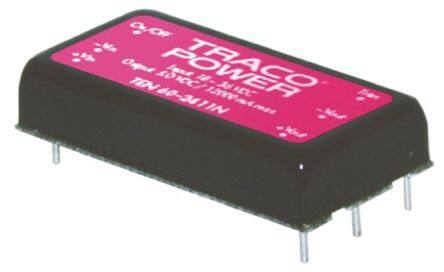

TEN 60-4811N
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 60W
PDF
/
Buying Options
Total Price: USD $96.32
Unit Price: USD $96.3248
≥1 USD $96.3248
≥10 USD $94.79536
≥100 USD $88.679712
≥500 USD $85.621712
≥1000 USD $81.3406
≥3000 USD $75.690982
Inventory: 110
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 25.4mm
Length 50.8mm
Technical
Total Power Output-Max 60W
Current - Output (Max) 12A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 92%
Number of Outputs 1
JESD-30 Code R-MDMA-P6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 60W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Series TEN 60N (60W)
Published 2012
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
