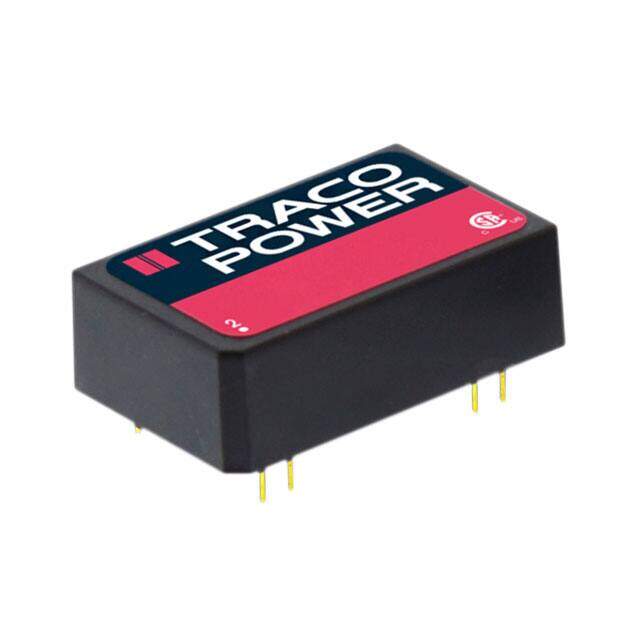

TEN 6-4821WIN
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 5W
PDF
/
Buying Options
Total Price: USD $26.51
Unit Price: USD $26.51202
≥1 USD $26.51202
≥10 USD $25.01134
≥100 USD $23.5956
≥500 USD $22.26
≥1000 USD $21
≥3000 USD $19.81132
Inventory: 5256
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Published 2012
Series TEN 6WIN (6W)
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Feature OCP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 5W
Additional Feature ADDITIONAL -5 VOLT OUTPUT ALSO AVAILABLE
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-P8
Number of Outputs 2
Efficiency 80%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 500mA 500mA
Voltage - Output 2 -5V
Total Power Output-Max 6W
Dimensions
Height Seated (Max) 10.45mm
Length 31.8mm
Compliance
RoHS Status ROHS3 Compliant
