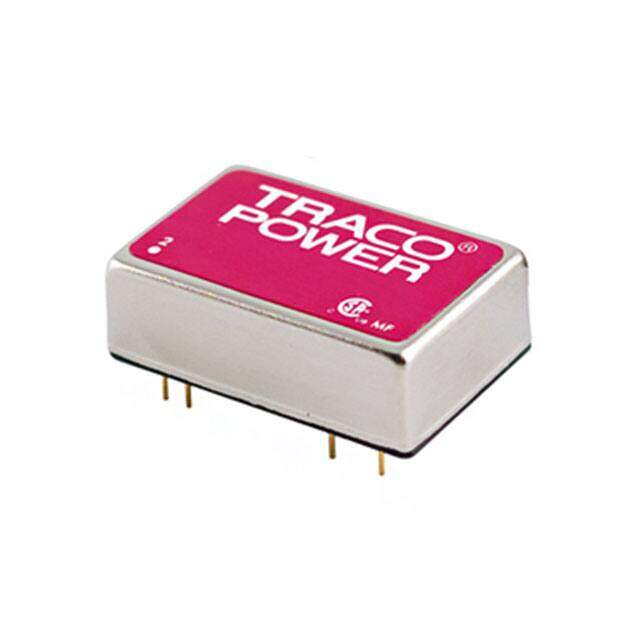

TEN 5-4822
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 6W
PDF
/
Buying Options
Total Price: USD $25.52
Unit Price: USD $25.52
≥1 USD $25.52
≥10 USD $25.1284
≥100 USD $24.735392
≥500 USD $23.5576
≥1000 USD $21.594496
≥3000 USD $21.201875
Inventory: 55
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 10.5mm
Technical
Total Power Output-Max 6W
Voltage - Output 2 -12V
Current - Output (Max) 250mA 250mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 86%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-MDIP-T8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Subcategory Other Analog ICs
Power (Watts) 6W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series TEN 5 (6W)
Published 2014
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 24-DIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
