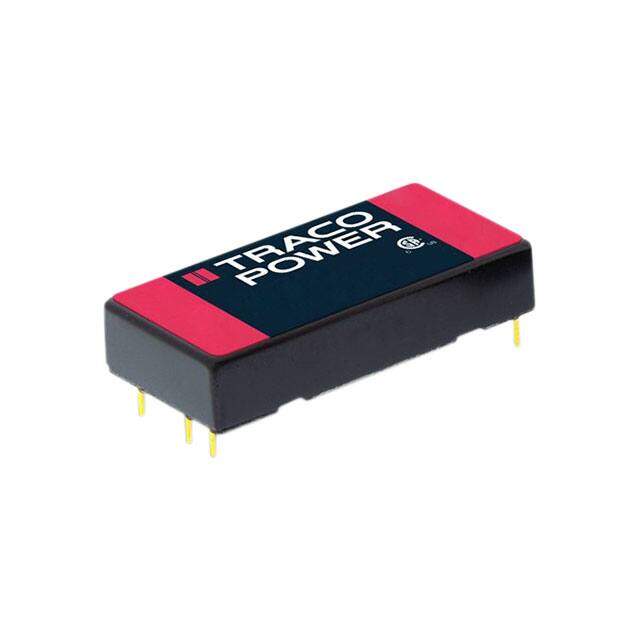

TEN 40-4823WIN image
Favorite
TEN 40-4823WIN image
Favorite

TEN 40-4823WIN

Traco Power
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-15V 40W
PDF
/
Buying Options
Total Price: USD $78.27
Unit Price: USD $78.2672
≥1 USD $78.2672
≥10 USD $72.90448
≥100 USD $68.201056
≥500 USD $65.849344
≥1000 USD $62.556912
≥3000 USD $58.212
Inventory: 101
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO

Technical

Operating Temperature -40°C~75°C With Derating
Published 2014
Series TEN 40WIN (40W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature Remote On/Off, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 40W
Additional Feature SEATED HGT CALCULATED
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-MDMA-T6
Number of Outputs 2
Efficiency 88%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 15V
Voltage - Output 1 15V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 1.33A 1.33A
Voltage - Output 2 -15V
Total Power Output-Max 40W

Dimensions

Length 50.8mm

Compliance

RoHS Status ROHS3 Compliant
