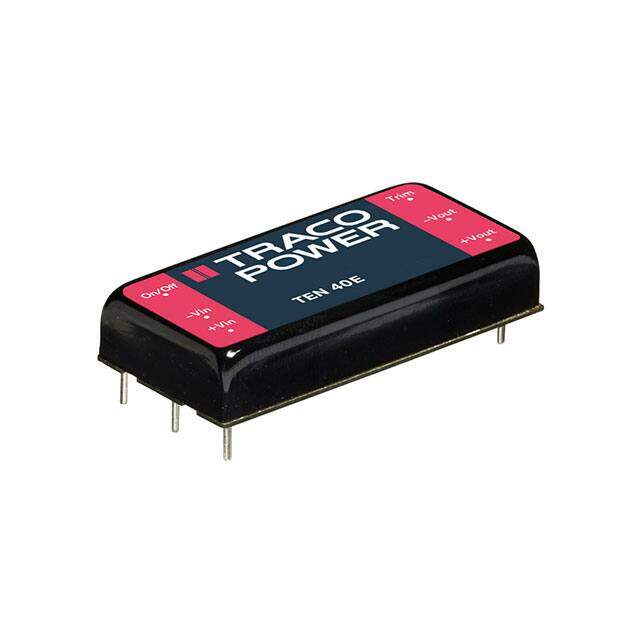

TEN 40-1213E
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
40 WATT DC/DC CONVERTER, INDUSTR
PDF
/
Inventory: 4783
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current - Output (Max) 2.666A
Voltage - Input (Min) 9V
Voltage - Output 1 15V
Voltage - Input (Max) 18V
Voltage - Isolation 1.6kV
Efficiency 91%
Number of Outputs 1
Power (Watts) 40W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Remote On/Off
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Series TEN 40E (40W)
Operating Temperature -40°C~85°C
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 1 Weeks
