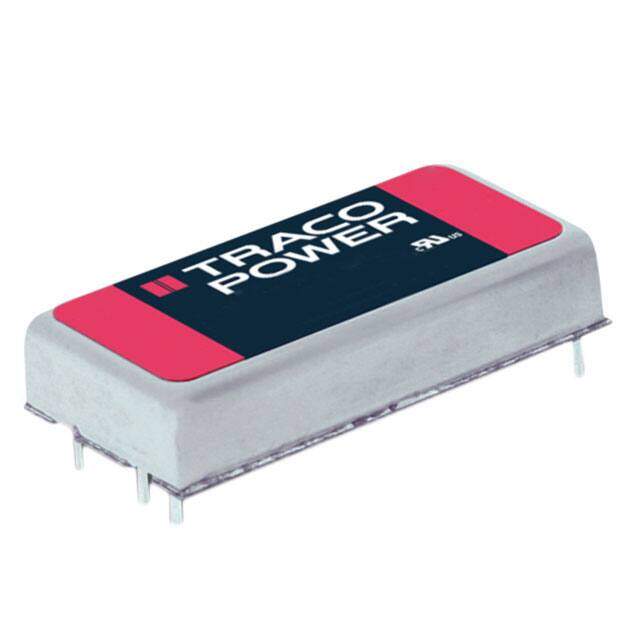

TEN 30-4812
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 30W
PDF
/
Inventory: 2296
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 25.4mm
Length 50.8mm
Technical
Total Power Output-Max 30W
Current - Output (Max) 2.5A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 91%
Number of Outputs 1
JESD-30 Code R-MDMA-T6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Additional Feature SEATED HGT CALCULATED
Power (Watts) 30W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Series TEN 30 (30W)
Published 2010
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
