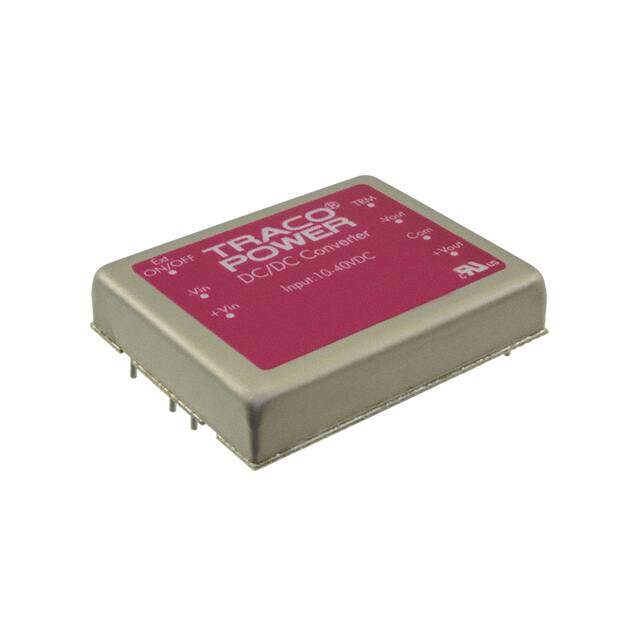

TEN 30-2412WI
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 30W
PDF
/
Buying Options
Total Price: USD $59.16
Unit Price: USD $59.15979
≥1 USD $59.15979
≥10 USD $55.81112
≥100 USD $52.652
Inventory: 154
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Total Power Output-Max 30W
Current - Output (Max) 2.5A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 10V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 40V
Voltage - Isolation 1.5kV
Efficiency 87%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDMA-P7
Pin Count 7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Subcategory Other Analog ICs
Power (Watts) 30W
Applications ITE (Commercial)
Terminal Finish Nickel (Ni)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Not For New Designs
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.60W x 0.40 H 50.8mmx40.6mmx10.2mm
Series TEN 30WI (30W)
Published 2006
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 7-DIP Module, 6 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
