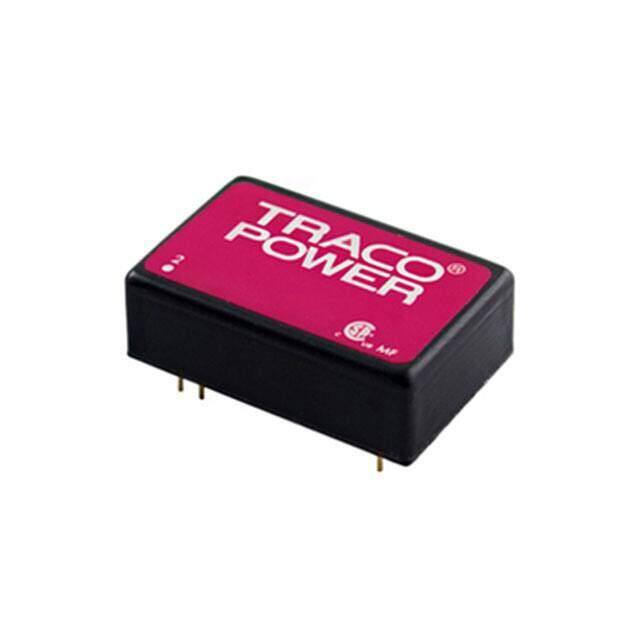

TEN 3-4810WI
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 2.5W
PDF
/
Inventory: 1131
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 24-DIP Module, 7 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Published 2014
Series TEN 3WI (3W)
Size / Dimension 1.26Lx0.79W x 0.40 H 32.0mmx20.0mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 2.5W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-P8
Number of Outputs 1
Efficiency 76%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 3.3V
Voltage - Output 1 3.3V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 750mA
Total Power Output-Max 2.475W
Dimensions
Width 20.3mm
Compliance
RoHS Status ROHS3 Compliant
