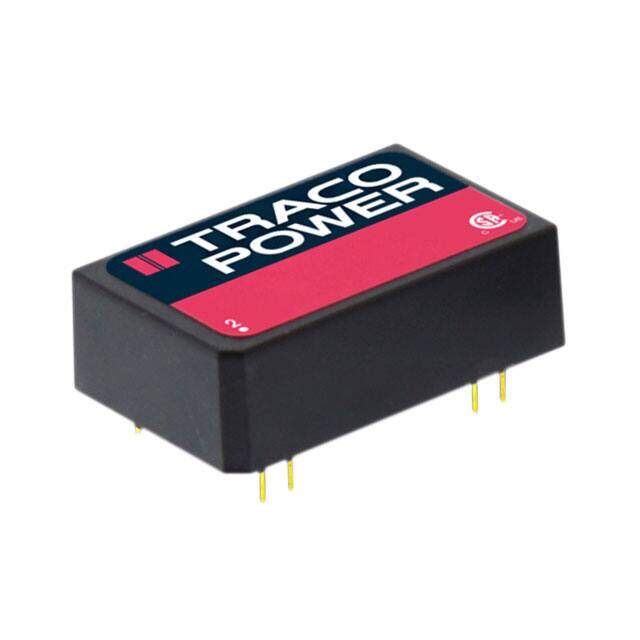

TEN 3-2421WIN
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 2.5W
PDF
/
Buying Options
Total Price: USD $14.55
Unit Price: USD $14.5464
≥1 USD $14.5464
≥10 USD $14.32728
≥100 USD $14.107104
≥500 USD $13.666224
≥1000 USD $12.343672
≥3000 USD $12.123232
Inventory: 120
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 31.8mm
Height Seated (Max) 10.7mm
Technical
Voltage - Output 2 -5V
Current - Output (Max) 250mA 250mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 80%
Number of Outputs 2
JESD-30 Code R-XDMA-P8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 2.5W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series TEN 3WIN (3W)
Published 2014
Operating Temperature -40°C~85°C
Physical
Surface Mount NO
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
