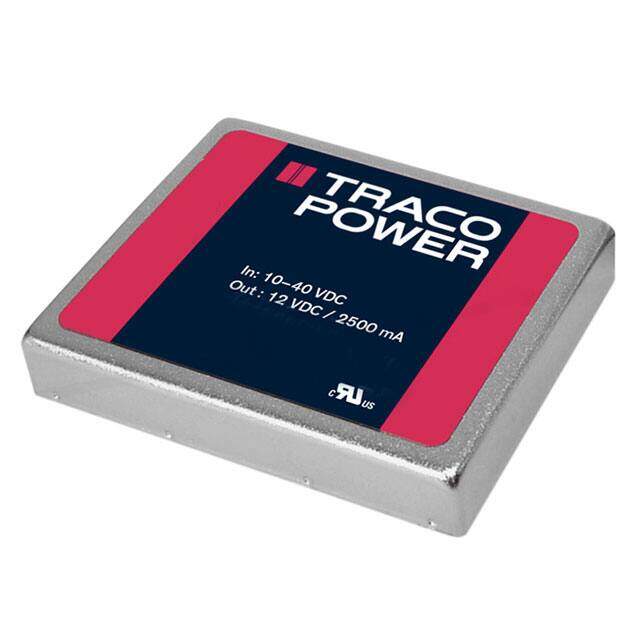

TEN 25-2412WI
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 30W
PDF
/
Buying Options
Total Price: USD $52.3
Unit Price: USD $52.2984
≥1 USD $52.2984
≥10 USD $47.67928
≥100 USD $46.165504
≥500 USD $43.895104
≥1000 USD $40.867904
≥3000 USD $37.466
Inventory: 103
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 7-DIP Module, 6 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Published 2010
Series TEN 25WI (30W)
Size / Dimension 2.00Lx1.60W x 0.37 H 50.8mmx40.6mmx9.3mm
Feature Remote On/Off, OTP, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 30W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 7
JESD-30 Code R-XDMA-P7
Number of Outputs 1
Efficiency 89%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 40V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 10V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Current - Output (Max) 2.5A
Total Power Output-Max 30W
Dimensions
Height Seated (Max) 9.8mm
Length 50.8mm
Width 40.6mm
Compliance
RoHS Status ROHS3 Compliant
